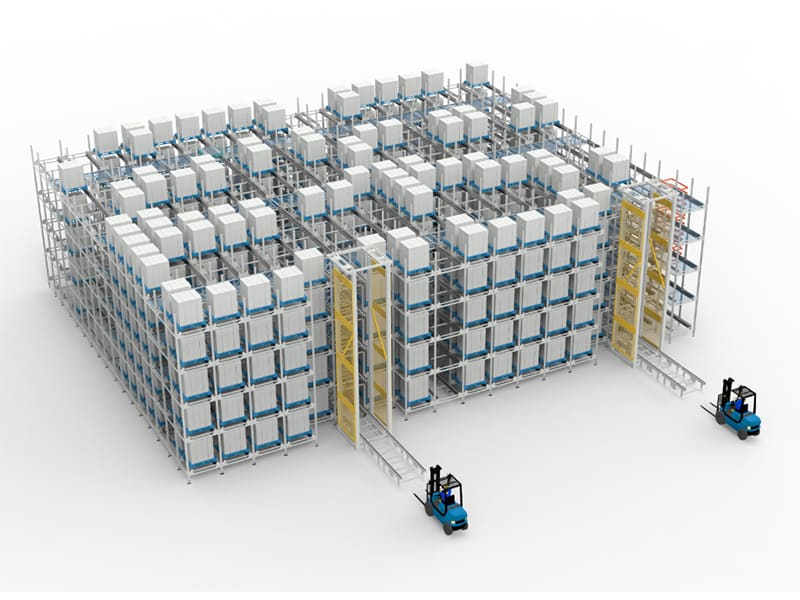

4 Way Shuttle System
The Four-Way Shuttle System is a high-density automated storage solution designed for efficient palletized goods management. It is ideal for industries with a limited number of SKUs (Stock Keeping Units) and operations that require storage and retrieval by lot or batch. This system is particularly suitable for sectors such as food & drank, chemicals, and logistics services, enhancing space utilization and operational efficiency.
How the 4 Way Shuttle System Works
This system utilizes advanced movement technology, allowing pallets to travel in four directions: left-right, front-back, and up-down. This flexibility enables optimized routing within the storage area, maximizing horizontal space utilization. Compared to traditional Automated Storage and Retrieval Systems (ASRS), the Four-Way Shuttle System increases storage density by approximately 5-10%, making it a highly efficient solution for high-density warehousing.
4-Way Pallet Shuttle
Running Time: 8 Hours
Rated Load: Max. 1.5 Ton
Net Weight: 330kg
Charging Time: 2 hours for 80%, 6 hours for 100% full
Charging Mode: Automatic Charging
Applicable Temperature: -30 ํC to +45 ํC

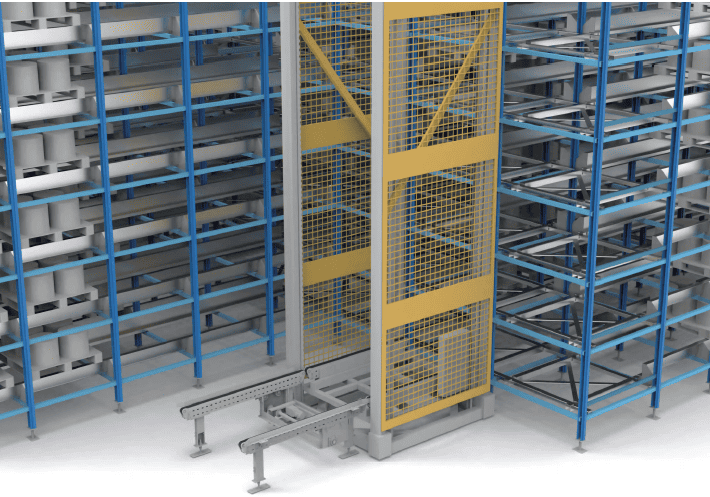

Vertical Lift Transport Machine
Running Time: 7×24 Hour
Rated Load: Max 1.5 Ton
Power Supply: AC380V, 50/60Hz
Positioning Accuracy: ≥ 2 mm
Charging Mode: Automatic Charging
Applicable Temperature: -30 ํC to 45 ํC
Benefits of 4 Way Shuttle System
Maximized Storage Capacity
The system increases storage capacity by making the most of the available warehouse space and height, even in limited areas.
Future Expansion Ready
Easily extend racking and storage tracks in the future without disrupting system operations during installation.
Seamless WMS/WCS Integration
The system fully integrates with WMS or WCS , ensuring smooth operation. It supports wireless connectivity for real-time, seamless control and monitoring.
Main Machine Broken Down
4-Way Shuttle can operate independently. If one unit fails, others can take over its function. Aanvullend, they have a backup power system to help reduce downtime.
