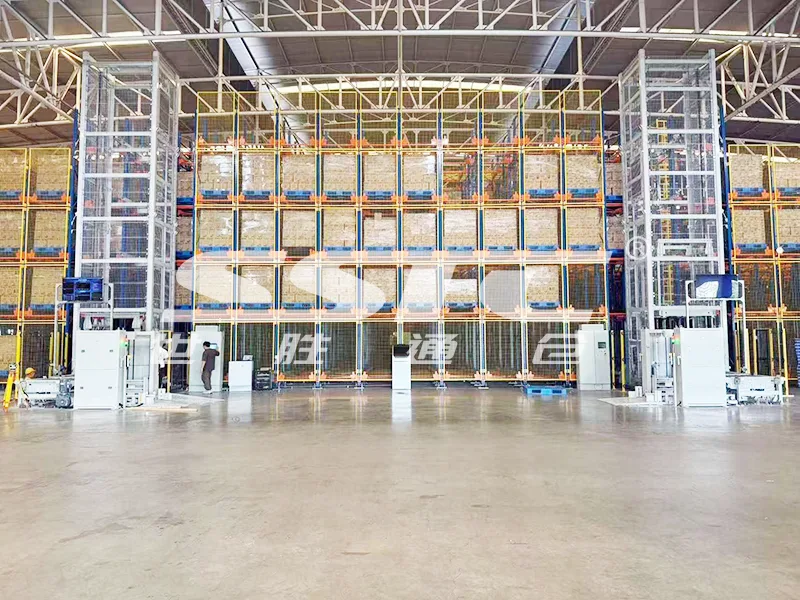

SSTC Intelligence High Density AS/RS Storage Systems
4-way shuttle racking system technology from SSTC Intelligence delivers maximum volumetric storage efficiency and seamless ASRS integration for modern high-density warehouse automation.
Unlike conventional two-way shuttles operating exclusively in fixed aisles, 4-way shuttle robot technology represents a paradigm shift in automated material handling. Designed with multi-directional drive mechanisms and optical positioning sensors, each shuttle executes smooth longitudinal and lateral transfers across specialized rack tracks without requiring mechanical turn-tables. Engineered specifically for dynamic 4-way shuttle pallet transportation, these units automatically adjust speed, balance load capacity up to 1,500 kg, and interface directly with vertical lifters to serve multi-tier storage levels with pinpoint precision.
Key Advantages of 4-Way Shuttle Storage in High-Density Warehouses
4-way shuttle storage architecture redefines high-density warehouse operations by replacing passive storage layouts with intelligent, flexible automation. By eliminating conventional forklift aisles and capitalizing on full vertical space, 4-way shuttle warehouse configurations maximize volumetric efficiency and deliver robust operational reliability.
By eliminating conventional forklift aisles, the 4-way shuttle racking matrix increases volumetric storage capacity by 30% to 50% compared to selective or drive-in racking systems.
The system allows flexible deployment of multiple shuttle vehicles within the same rack structure, ensuring dynamic task re-routing and zero downtime during maintenance.
Optimized for low-energy consumption, SSTC Intelligence shuttles thrive in extreme environments—ranging from deep-freeze cold stores (-25°C) to ambient manufacturing facilities.
Precision Pallet Handling & Intelligent Fleet Management
Equipped with high-precision hydraulic lifting mechanisms and dynamic centering sensors, SSTC Intelligence 4-way shuttle robot units ensure secure, swift pallet engagement across complex multi-deep storage matrices without mechanical misalignment.
The onboard control system continuously monitors individual vehicle telemetry, load weight, and battery performance, automatically routing shuttles to fast-charging stations during off-peak windows to achieve uninterrupted 24/7 continuous operations.

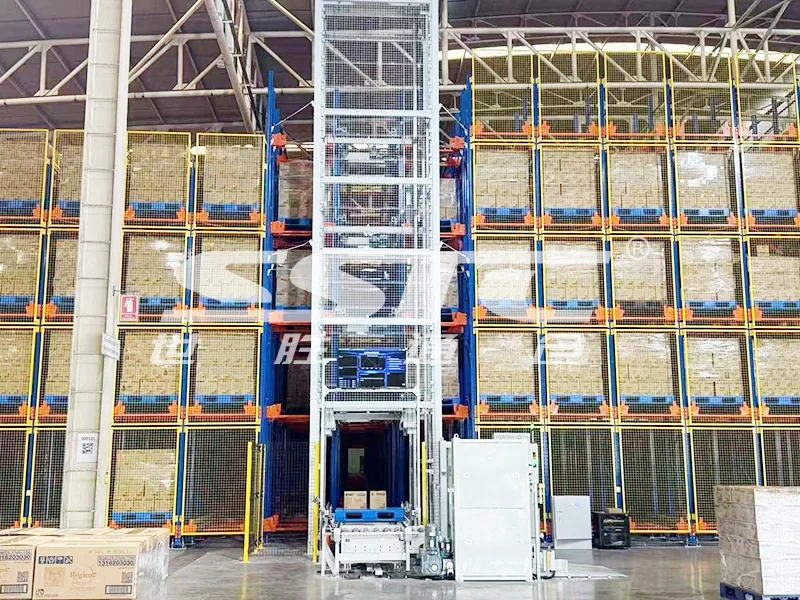

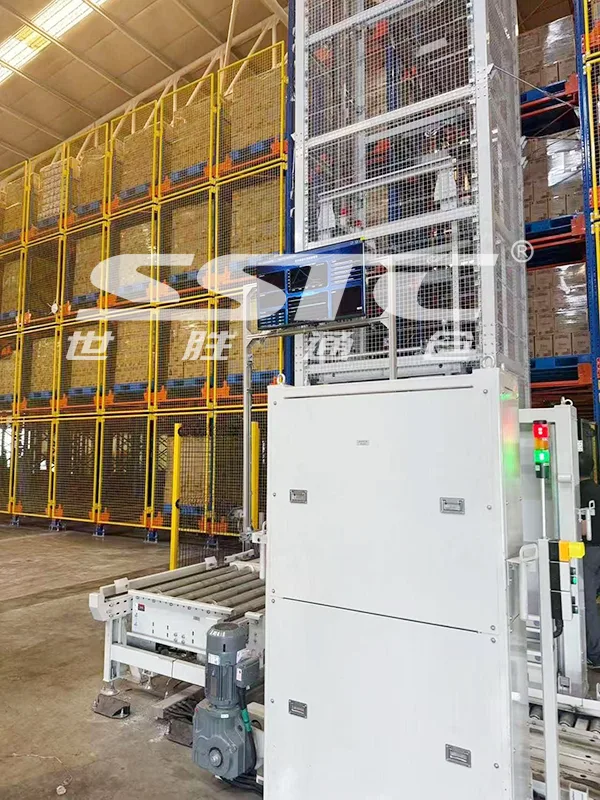

Seamless interaction with high-speed vertical lifters (reciprocating conveyors) enables multi-tier level transfers with millimeter-level accuracy, significantly expanding total hourly throughput for automated high-density ASRS facilities.
- Millimeter-precision optical positioning for zero pallet jamming
- Automated fast-charging cycles guaranteeing 24/7 productivity
- Modular hardware design reducing long-term maintenance costs
Turnkey 4-Way Shuttle System Integration with WMS/WCS
A high-performance 4-way shuttle system relies on intelligent software coordination as much as dynamic mechanical design. SSTC Intelligence provides end-to-end 4-way shuttle ASRS solutions combining robust structural rack manufacturing with proprietary Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS).
Algorithmic path planning prevents shuttle traffic bottlenecks and optimizes vehicle charging cycles during high-throughput operating windows.
Live visual tracking enables remote monitoring of vehicle telemetry, sensor status, and inventory locations with predictive maintenance alerts.
Elevate Your Warehouse Automation with SSTC Intelligence
Whether you are designing a greenfield automated logistics hub or retrofitting an existing storage facility, our engineering team delivers tailored 4-way shuttle racking system layouts built to international standards.
Engineering Compliance for 4-Way Shuttle Racking System Projects
Deploying a full-scale automated 4-way shuttle racking system demands structural integrity that far exceeds standard static pallet storage racks. Because 4-way shuttle vehicles execute rapid acceleration, dynamic braking, and automated directional switching directly on specialized track profiles, the supporting rack infrastructure must withstand continuous multi-directional forces without dynamic deflection over decades of intensive operation.
At SSTC Intelligence, our structural engineering team designs every high-bay racking matrix in strict accordance with FEM (European Materials Handling Federation) standards, including FEM 10.2.09 for high-density automated racking. Utilizing premium Q355B and Q460C high-tensile structural steel, our rack profiles undergo rigorous finite element analysis (FEA) simulations to evaluate seismic loading factors, floor slab stress distributions, and thermal contraction dynamics for ambient and deep-freeze logistics environments.
By precision-punching track guide holes with sub-millimeter tolerances and incorporating dual-locking anchor connections, our rack assemblies guarantee flawless shuttle vehicle transitions across cross-aisles, minimizing wear on drive wheels and preventing optical positioning sensor errors caused by structural sway.
Industrial Applications and ROI of 4-Way Shuttle Racking System Implementations
The exceptional spatial efficiency and operational adaptability of 4-way shuttle racking system architecture make it the benchmark solution for high-throughput industries. According to global logistics research published in Modern Materials Handling insights, automated high-density shuttle storage delivers one of the fastest returns on investment (ROI) in industrial warehousing—typically achieving full capital amortization within 18 to 24 months through labor reduction, space optimization, and energy savings.
In cold storage facilities, electricity for refrigeration represents up to 60% of operating expenses. By eliminating wasted aisle space and maximizing vertical air volume, SSTC Intelligence 4-way shuttles reduce cold store building footprint requirements by up to 40%, significantly cutting refrigeration utility bills.
Fast-moving consumer goods facilities require high pallet turnover and dynamic SKU management. Integrated with smart WMS/WCS dispatching, multi-vehicle shuttle fleets seamlessly execute automated FIFO (First-In, First-Out) or LIFO picking strategies during peak demand windows.
